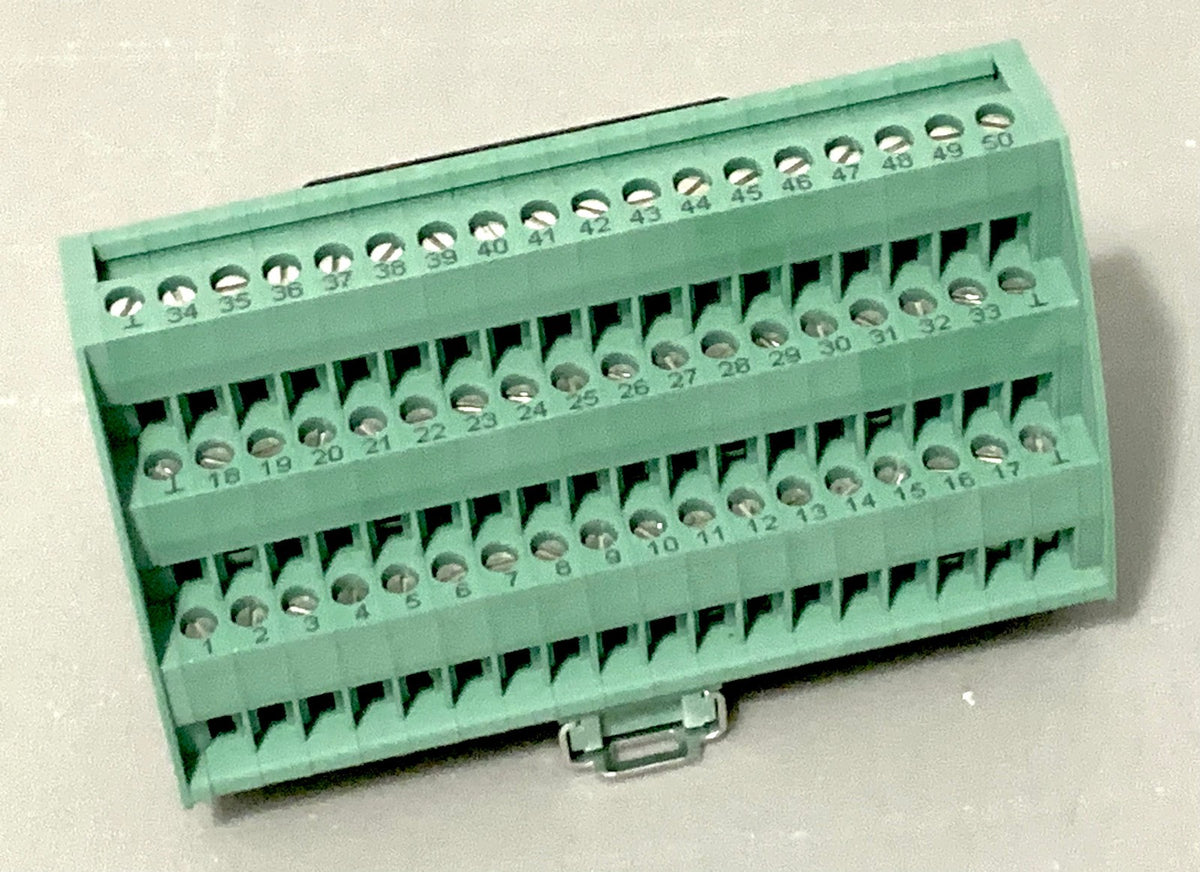

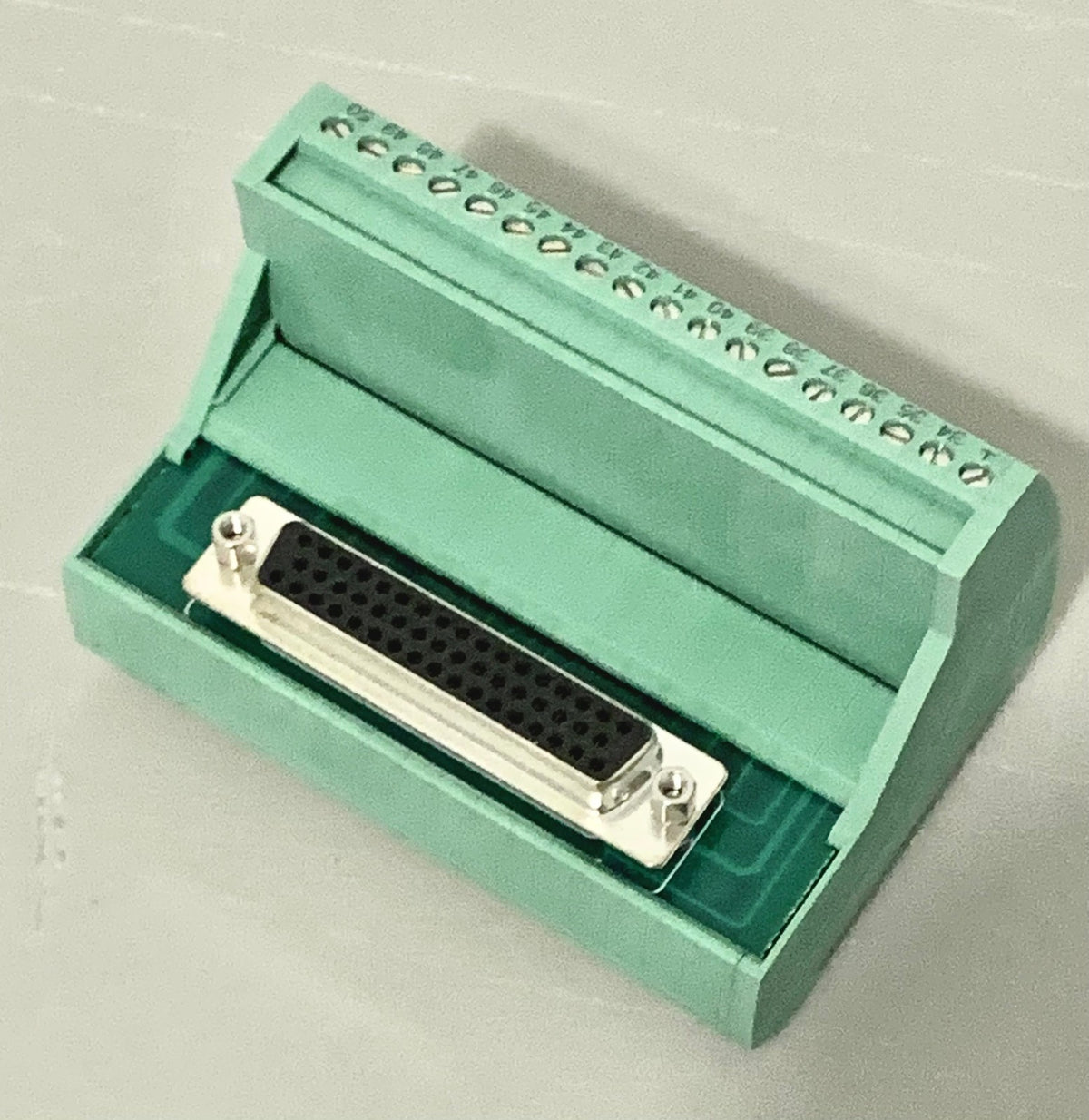

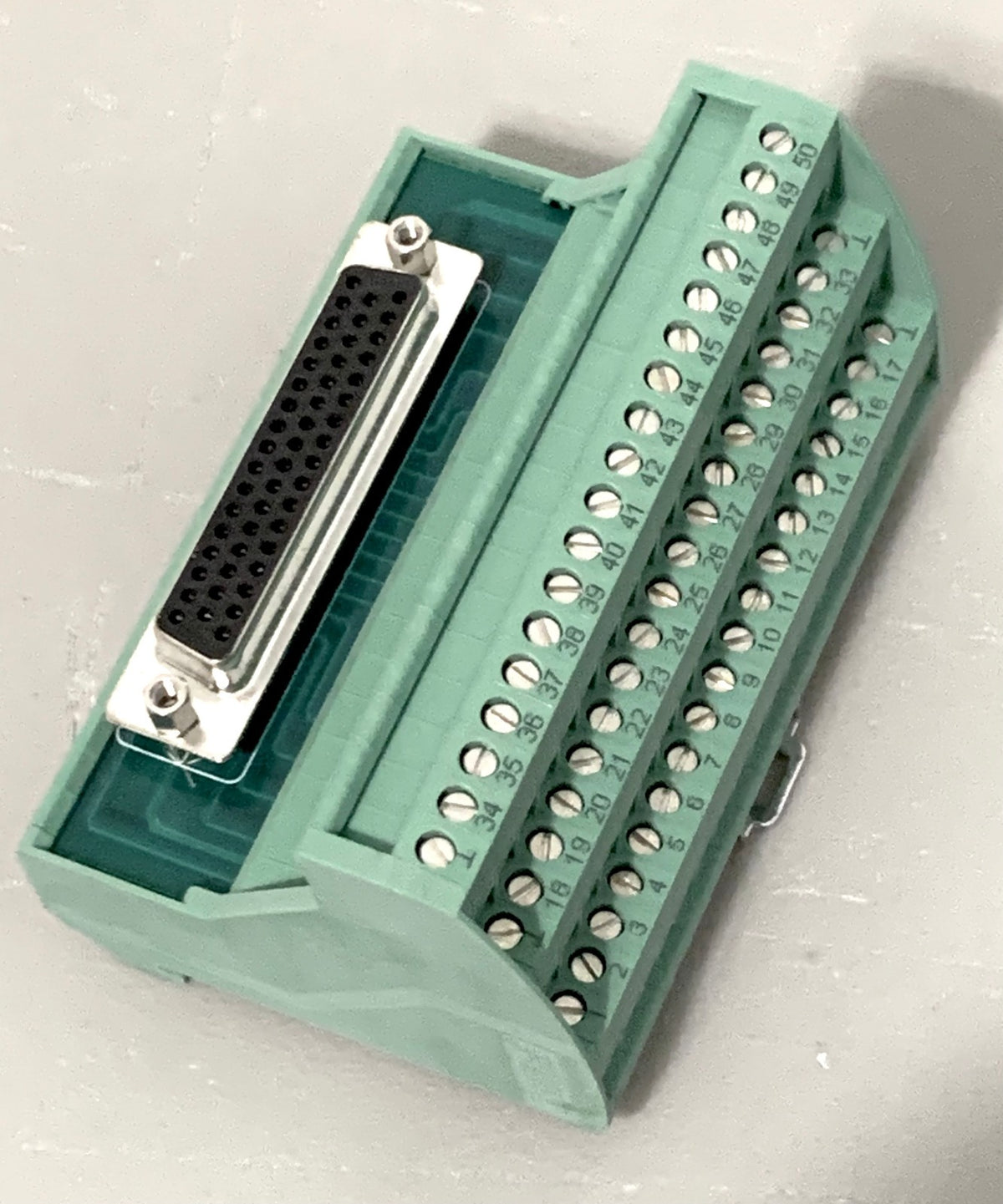

Phoenix Contact VIP-3/SC/D50SUB/F Interface Module 2315201, 50 Pin DSub Breakout

Phoenix Contact VIP-3/SC/D50SUB/F Interface Module 2315201 - 50 Pin DSub Breakout Box - Fast FREE Shipping

Overview

FTAs are the next generation of passive, discrete wiring. These UL508 recognized FTAs are ideal for applications that require fast, fault-free field device connection to process or motion controllers. The patented module design integrates a channel that utilizes the full range of ZB holders, resulting in flexible module marking options. To simplify wire termination, field I/O marking is easily accessible on the screw connection surface. The module features a metal mounting foot that moves along the length of the product for easy mounting and disconnecting. This D-Sub FTAS allows signal lines with D-subminiature or sockets strips to be connected to screw terminal blocks in accordance with IEC 807-2/DIN 41 652. Conductor sizes of up to 2.5 mm² can be accommodated and both male and female variants are available. These FTAS' are UL 508 recognized.

Features

• 9-pos. ... 50-pos.
• Screw connection
• 1:1 connection
• According to IEC 60603-13

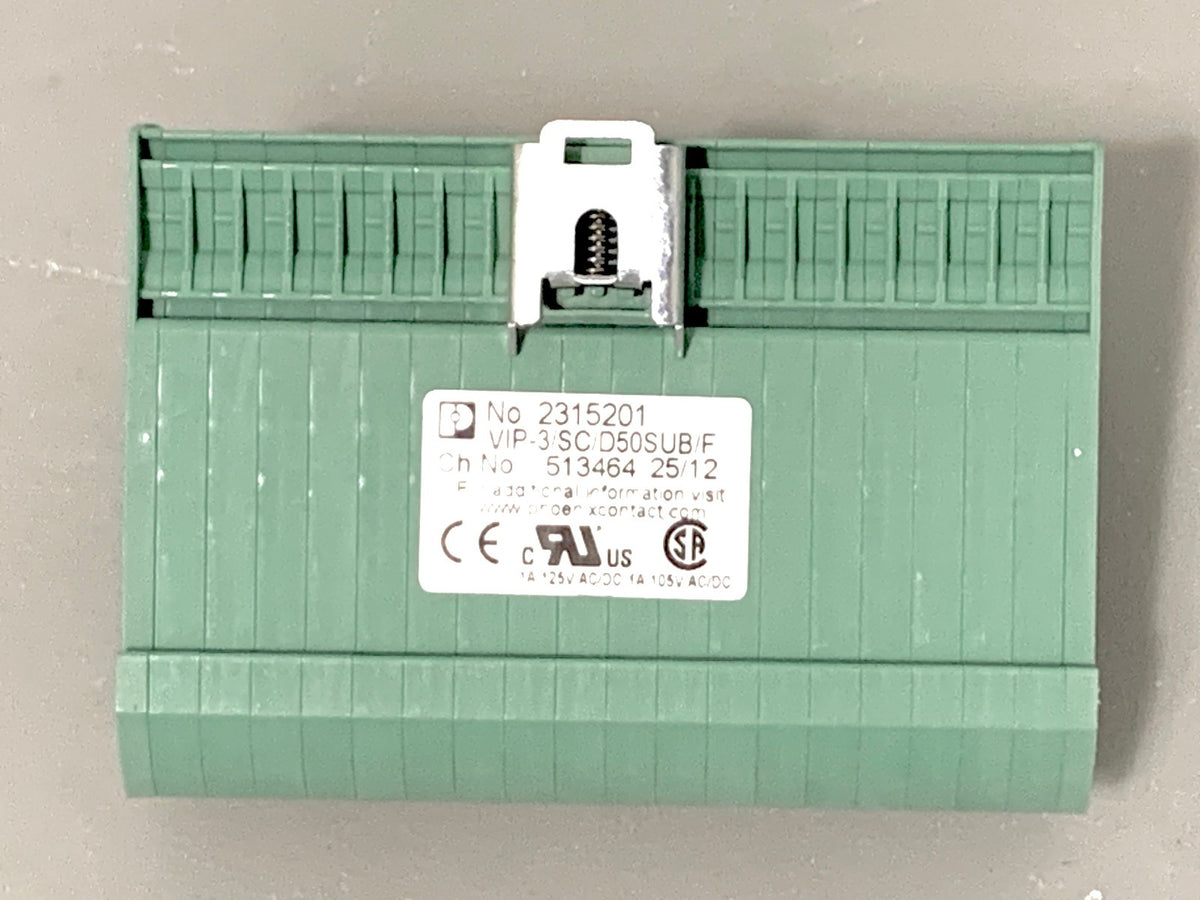

• Metal foot
• 9 to 50-pos.

Tech Specifications

Width	98.2 mm
Height	69 mm
Depth	62 mm
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Max. perm. operating voltage	25 V AC
Max. perm. operating voltage	60 V DC
Max. perm. current (per branch)	2 A
Number of Positions	50
Status display	No
Mounting position	any
Connection name	Field level
Connection in acc. with standard	IEC/EN
Connection Method	Screw connection
Stripping length	8 mm
Screw thread	M 3
Conductor cross section solid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Connection name	Controller level
Connection Method	D-SUB socket strip
Number of Connections	1
Number of Positions	50
Connection in acc. with standard	CSA
Standards/regulations	IEC 60664
Standards/regulations	DIN EN 50178
Rated surge voltage	1.2 kV
Degree of pollution	2
Overvoltage category	II
China RoHS	Environmentally Friendly Use Period = 50
China RoHS	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
REACh SVHC	Lead 7439-92-1
Flammability rating according to UL 94	V0
Nominal Voltage	25 V AC
Nominal Voltage	60 V DC

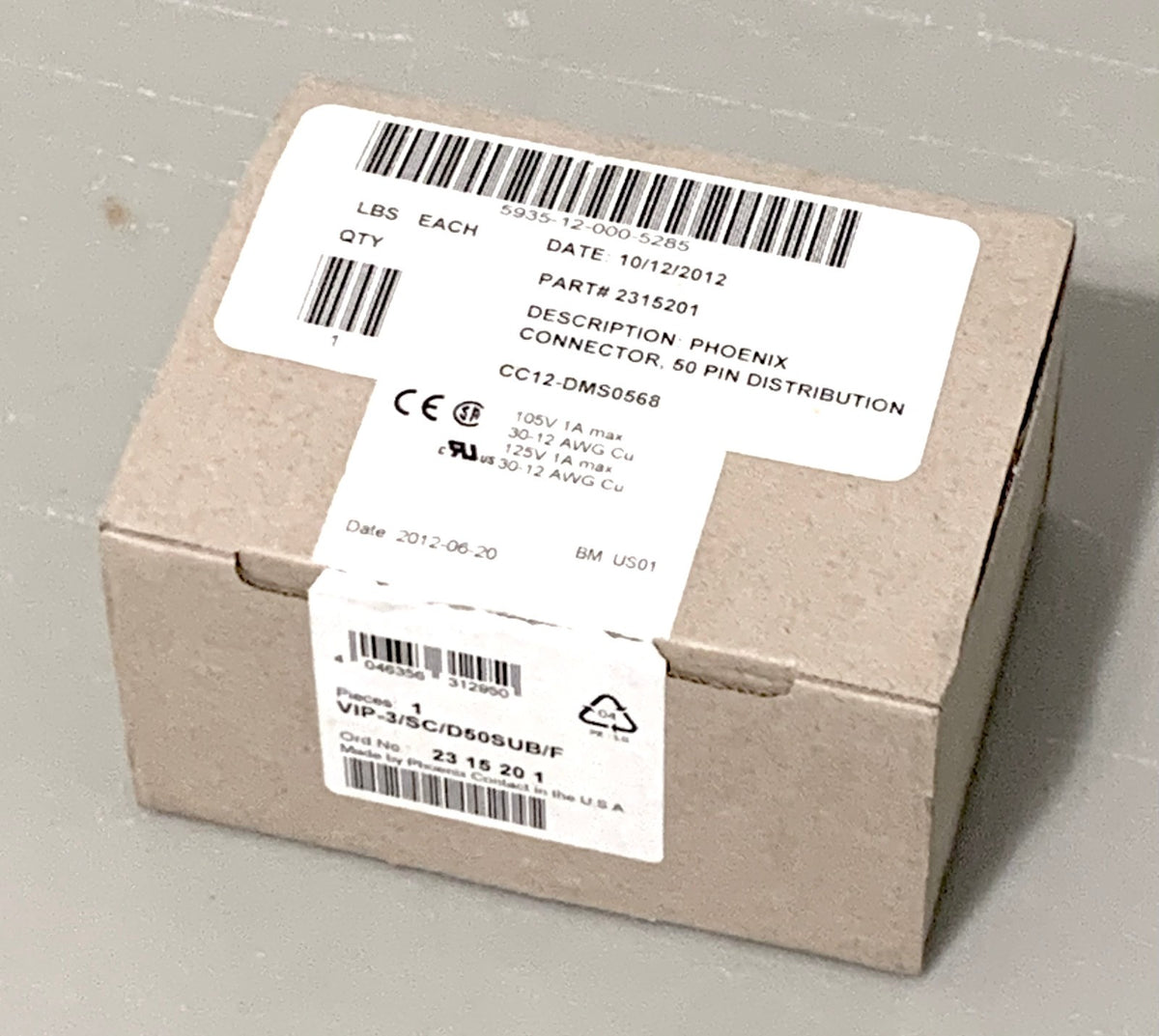

Condition. New: unused, in its original packaging.
